arcsolver

A Python library for automatically solving ARC challenges using Claude and object-centric modeling.

This library contains tools for visualizing, analyzing and solving tasks from the Abstraction and Reasoning Corpus (ARC) challenge dataset.

As this library was built using nbdev, the source code can be found in the jupyter notebooks directory (nbs).

Full documentation available at https://agemoai.github.io/arcsolver.

Installation

  1. Install claudette from its GitHub repository (PyPi version is a bit behind):
$ pip install git+https://github.com/AnswerDotAI/claudette.git@5ea3a59
  1. Install arcsolver:
$ pip install arcsolver
Note

To use the automated description or solution generation features of this library, access to Anthropic’s Claude Sonnet 3.5 model is required. Set the ANTHROPIC_API_KEY environment variable or configure appropriate credentials for AWS bedrock or Google Vertex.

Key Features

  • Task Management: Load and visualize ARC tasks with the ArcTask class
  • Object-Centric Modelling: A set of primitive classes for representing grid objects and transformations
  • LLM Integration: Designed to use Claude Sonnet 3.5 for automated task analysis and solution generation
  • Extensible Architecture: Easy to add new primitives and helper functions to enhance solving capabilities

Quick Start

Task Representation

The task module provides classes for working with ARC tasks

from arcsolver.task import ArcGrid, ArcPair, ArcTask

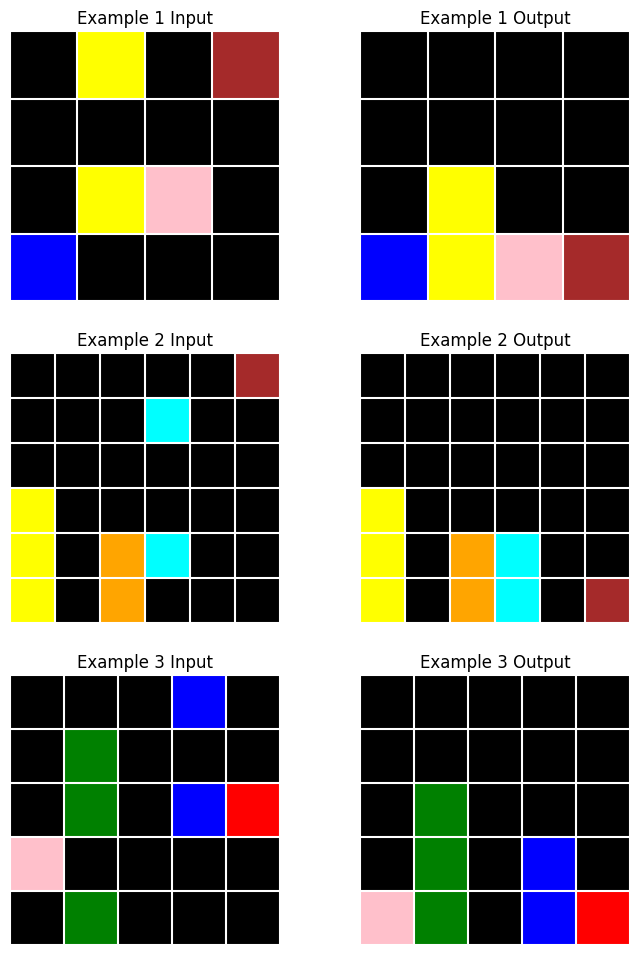

task = ArcTask('1e0a9b12'); task.plot()

An ArcTask comprises a list of input-output example ArcPairs, each of which holds two ArcGrids. Each class has convenient plot methods for visualization or directly outputting to binary strings that can be passed to Claude.

print(f"Input grid 1 plot: {task.train[0].input.plot(to_base64=True)[:20]}...")
Input grid 1 plot: b'\x89PNG\r\n\x1a\n\x00\x00\x00\rIHDR\x00\x00\x01H'...

Object-centric Models

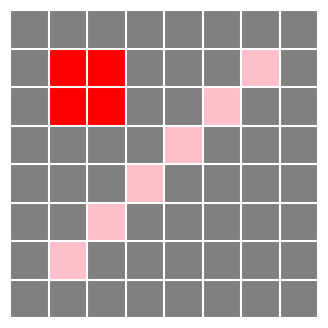

The ocm module provides a set of primitive classes for constructing object-centric models of ARC grids. For example:

from arcsolver.ocm import Vector, Rectangle, Line, Grid, Color, Direction

grid = Grid(
    size=Vector(8,8),
    background_color=Color('grey'),
    objects=[
        Rectangle(position=Vector(1,1), size=Vector(2,2), color=Color('red')),
        Line(position=Vector(6,1), direction=Direction.NE, length=6, color=Color('pink'))
    ]
)
ArcGrid(grid.to_array()).plot()

Task Descriptions

Use Claude to analyze and describe ARC tasks

from arcsolver.describe import DescriptionGenerator

describer = DescriptionGenerator()
d = await describer.describe_task(task, 1); print(d[0].d)

The input grids contain various colored squares arranged on a black background in different positions. In the transformation, all colored squares “fall” vertically to the bottom row while maintaining their relative horizontal positions and original colors. The rest of the grid becomes filled with black squares, resulting in an output where all non-black squares are aligned in the bottom row, preserving their left-to-right ordering from the input grid.

Warning

Depending on the task and the description strategy used (see docs), DescriptionGenerator may decompose the task into multiple images, resulting in a token-intensive prompt (~$0.10 using Sonnet 3.5).

Solution Generation

Use Claude to construct a solution to an ARC task, automatically refining its attempts based on execution and prediction error feedback.

from arcsolver.solve import ArcSolver

solver = ArcSolver()
solutions = await solver.solve(task)

Solving task: 1e0a9b12
Generating descriptions... | Attempts: 0/30 | Best Score: 0.000 | Cost: $0.000
Starting solution attempts... | Attempts: 0/30 | Best Score: 0.000 | Cost: $0.142
Generating initial solutions... | Attempts: 0/30 | Best Score: 0.000 | Cost: $0.142
Testing solutions... | Attempts: 0/30 | Best Score: 0.000 | Cost: $0.231
Continuing refinement... | Attempts: 2/30 | Best Score: 0.866 | Cost: $0.231
Refining previous solutions... | Attempts: 2/30 | Best Score: 0.866 | Cost: $0.231
Testing solutions... | Attempts: 2/30 | Best Score: 0.866 | Cost: $0.332
Continuing refinement... | Attempts: 4/30 | Best Score: 0.904 | Cost: $0.332
Refining previous solutions... | Attempts: 4/30 | Best Score: 0.904 | Cost: $0.332
Testing solutions... | Attempts: 4/30 | Best Score: 0.904 | Cost: $0.424
Continuing refinement... | Attempts: 6/30 | Best Score: 0.951 | Cost: $0.424
Refining previous solutions... | Attempts: 6/30 | Best Score: 0.951 | Cost: $0.424
Testing solutions... | Attempts: 6/30 | Best Score: 0.951 | Cost: $0.528
Continuing refinement... | Attempts: 8/30 | Best Score: 0.951 | Cost: $0.528
Refining previous solutions... | Attempts: 8/30 | Best Score: 0.951 | Cost: $0.528
Testing solutions... | Attempts: 8/30 | Best Score: 0.951 | Cost: $0.633
Continuing refinement... | Attempts: 10/30 | Best Score: 0.958 | Cost: $0.633
Refining previous solutions... | Attempts: 10/30 | Best Score: 0.958 | Cost: $0.633
Testing solutions... | Attempts: 10/30 | Best Score: 0.958 | Cost: $0.732
Continuing refinement... | Attempts: 12/30 | Best Score: 0.965 | Cost: $0.732
Refining previous solutions... | Attempts: 12/30 | Best Score: 0.965 | Cost: $0.732
Testing solutions... | Attempts: 12/30 | Best Score: 0.965 | Cost: $0.835
Found potential solution, validating... | Attempts: 12/30 | Best Score: 1.000 | Cost: $0.835
Solution found! | Attempts: 14/30 | Best Score: 1.000 | Cost: $0.835
Solution found! 🎉 | Attempts: 14/30 | Best Score: 1.000 | Cost: $0.835

Contributing

Contributions are welcome! Refined prompts, new OCM primitives, expanded tool-use, alternative retry strategy…

Feel free to raise an issue or submit a PR.

Learn More

To read about the motivation for building this tool, check out our blog and watch out for future posts
